Opis

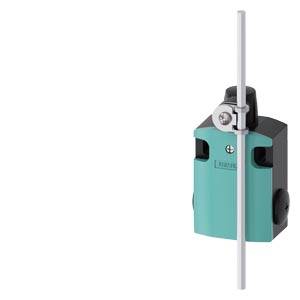

Namjestite polugu za prekidač Alu 3SE5112
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SE51120CH80
EAN koda: 4011209692299
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Vrsta proizvoda |
pozicijski prekidač |
|---|---|
| Priključak |
vijak |
| Vrsta aktiviranja |
zakretni pogon |
| Prebacivanje struje (maks.) |
6 A |
| Vrsta kontakta |
1 otvarač |
| Kontaktni materijal |
srebrova legura |
| Težina |
368 g |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+85 °C |
| Vrsta zaštite |
IP65 |
| Veličina navoja |
M20 x 1.5 |
| Mehanički vijek trajanja |
1.5E7 |
| Električni vijek trajanja |
100000 |
| Materijal |
metal |
| Širina |
40 mm |
| Tip |
3SE5112-0CH80 |
| Sadržaj |
1 St. |

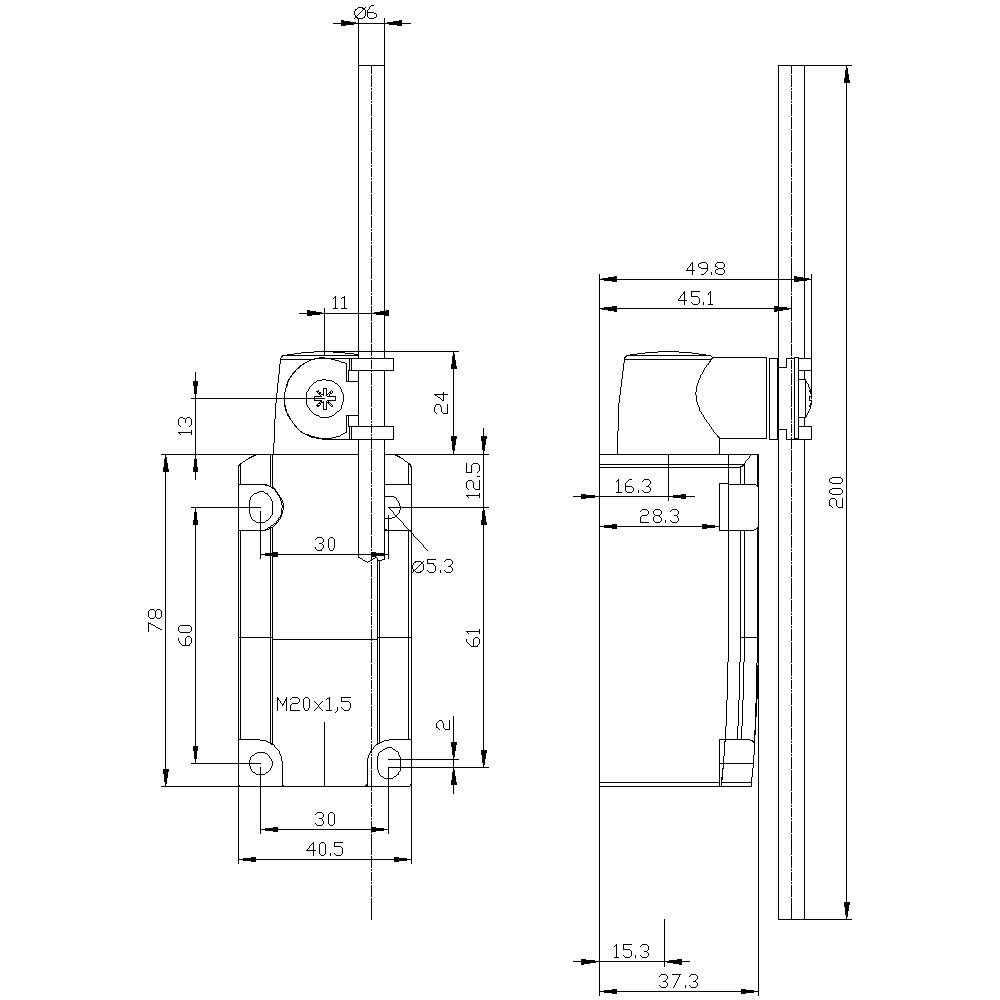

| dim. |
(D x Š) 281 mm x 40 mm |
| RoHS-konforno |
Da |
| Dužina |
281 mm |
| Dubina |
49.8 mm |
| Switching function |
Quick-break switch |
| Housing material |
Metal |
| Suitable for safety functions |
FALSE |
| Coating housing |
Lacquered |
| With status indication |
FALSE |
| Type of interface for safety communication |
None |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Construction type housing |
Cuboid |
| Degree of protection (IP) |
IP65 |
| Forced opening |
FALSE |
| Number of safety auxiliary contacts |
0 |
| Type of control element |
Actuating rod |
| Type of interface |
None |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6 A |
| Rated operation current Ie at AC-15, 24 V |
6 A |
| Rated operation current Ie at DC-13, 125 V |
0.55 A |
| Rated operation current Ie at DC-13, 24 V |
3 A |
| Width sensor |
40 mm |
| Height of sensor |
49.8 mm |
| Length of sensor |
281 mm |
| Switching function latching |
FALSE |
| Ambient temperature during operating |
-25-85 °C |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Alignment of the control element |
Roller cam straight |
| Degree of protection (NEMA) |
12 |
