Opis

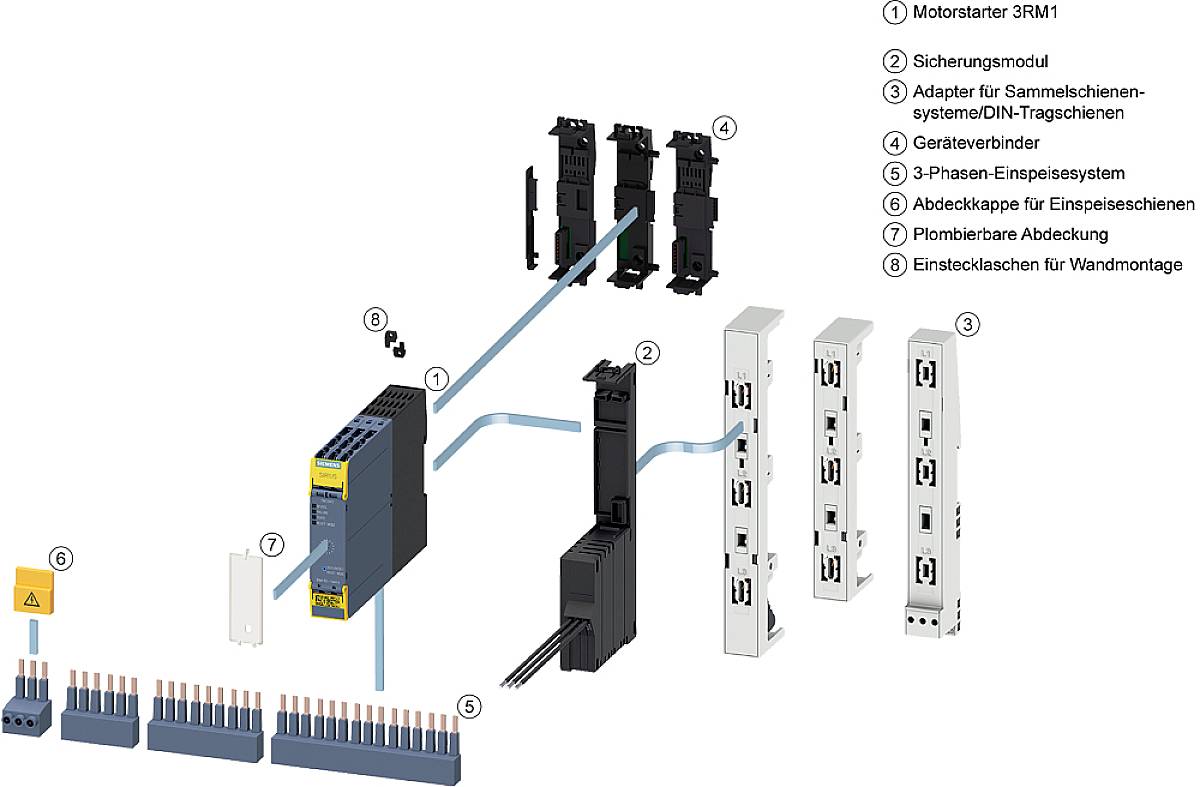

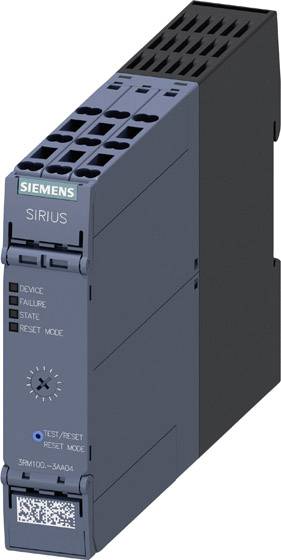

SIRIUS 3RM1 motorni starter za radno prebacivanje trofaznih motora. Široka širina, višenamjenska, s elektroničkom zaštitom od preopterećenja, dugotrajnom i energetski učinkovitom tehnologijom hibridnog preklapanja, niska razlika u ure aju zbog širokog raspona podešavanja, jednostavna instalacija zbog manje instalacije, brzo dijagnosticiranje grešaka putem LED zaslona, inovativni koncept kućišta, npr. S označenim preklopnim poklopcima i uklonivim terminalima. Dostupni kao izravni ili stražnji mjenjač po izboru s ATEX certifikatom i sigurnosnim isključivanjem, s različitim rasponima struje motora, tipovima napajanja i tehnikama povezivanja. Opsežni pribor kao što su priključci uređaja, modul osigurača, sustav za zatezanje ili poklopci koji se mogu zatvoriti kompletiraju sustav. Započnite u zatvorenom prostoru - motorni starter SIRIUS 3RM1
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RM10021AA04
EAN koda: 4011209914698
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci

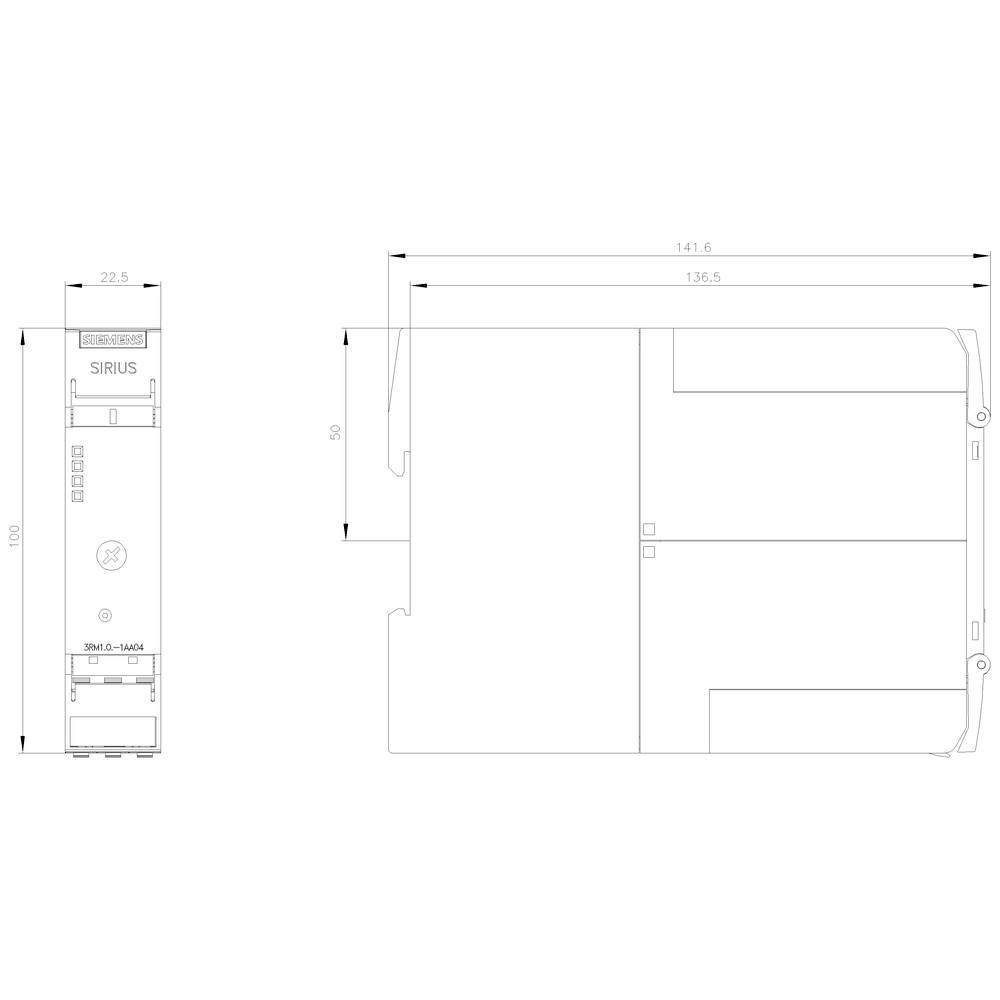

| Dubina |
141.6 mm |
|---|---|
| Visina |
100 mm |
| Širina |
22.5 mm |
| Proizvođač-br. dijela |
3RM10021AA04 |
| Nazivna struja |
2.0 A |
| Nazivni napon |
24 V/DC |
| Snaga motora bei 400 V |
0.75 kW |
| Maks. temperatura |
60 °C |
| Min. temperatura |
-25 °C |
| Width |
22.5 |
| Height |
100 mm |
| Depth |
141.6 mm |
| With transformer |
FALSE |
| Rated operation power at AC-3, 400 V |
0.75 kW |
| Number of command positions |
0 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Suitable for emergency stop |
FALSE |
| Rated operation current Ie |
2 A |
| Number of indicator lights |
4 |
| Overload release current setting |
2-2 A |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for Modbus |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
FALSE |
| External reset possible |
TRUE |
| Suitable for rail mounting |
TRUE |
| Rated control supply voltage DC |
24-24 V |
| Degree of protection (IP) |
IP20 |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Release class |
CLASS 10 A |
| With short-circuit release |
FALSE |
| With fuse |
FALSE |
| Type of electrical connection of main circuit |
Screw connection |
| Type of electrical connection for auxiliary- and control current circuit |
Screw connection |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Voltage type for actuating |
DC |
| Type of motor starter |
Other |
| Rated operation power at AC-3, 230 V, 3-phase |
0.37 kW |
| Rated power, 460 V, 60 Hz, 3-phase |
0.551624062 kW |
| Rated operation current at AC-3, 400 V |
2 A |
| Ambient temperature, upper operating limit |
60 °C |
