Opis

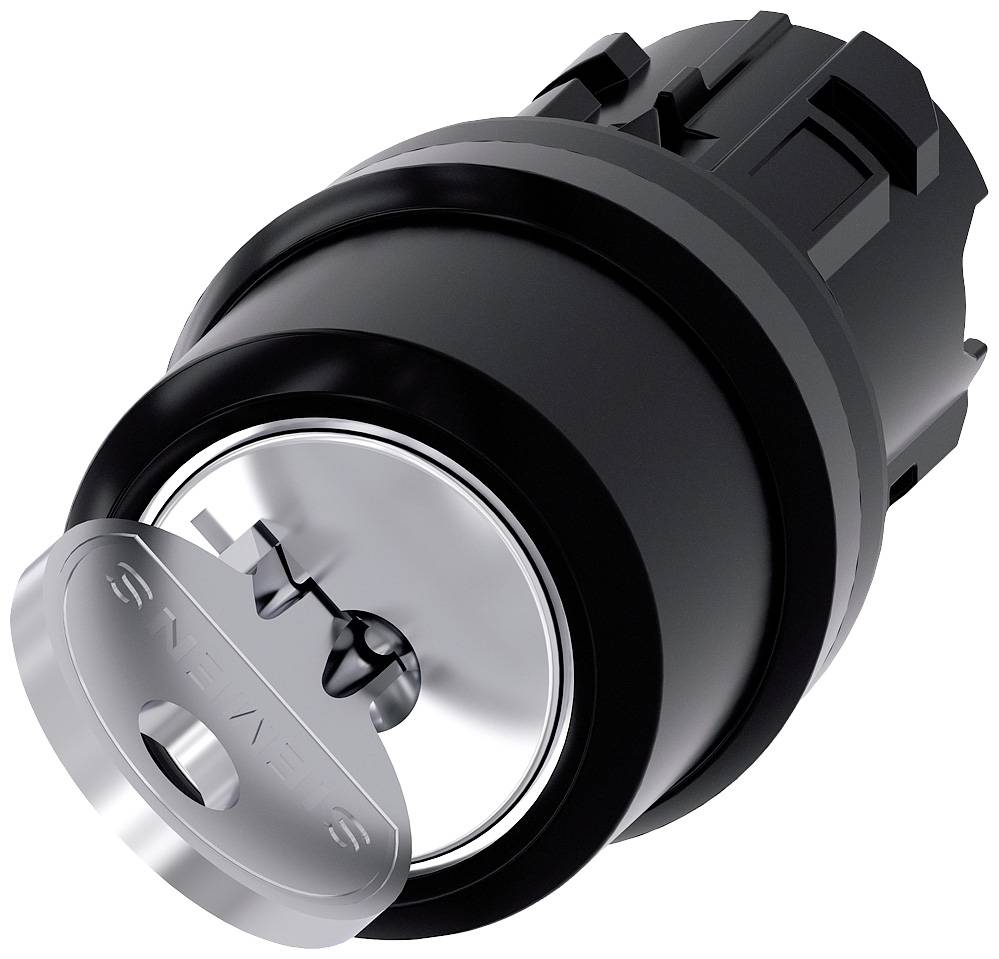

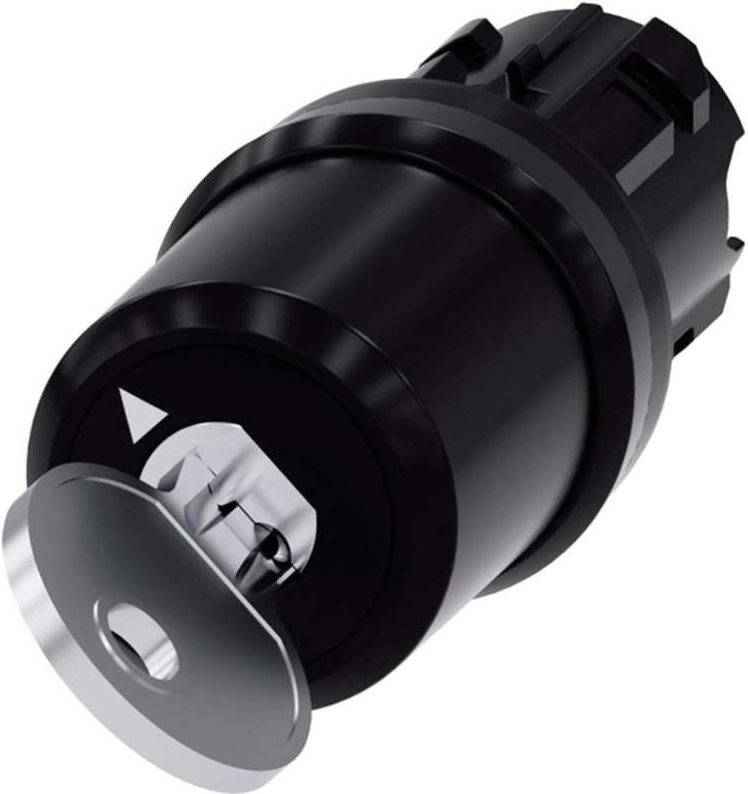

key-operated switch Siemens, 22 mm, round, plastic, lock number SSG10, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions.

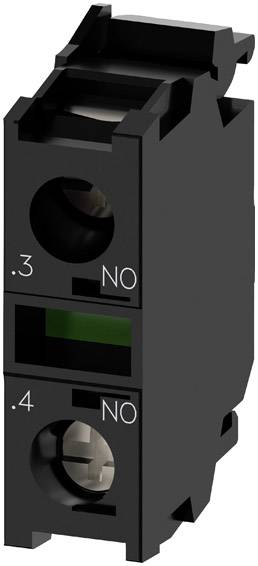

Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Isporuka uključuje

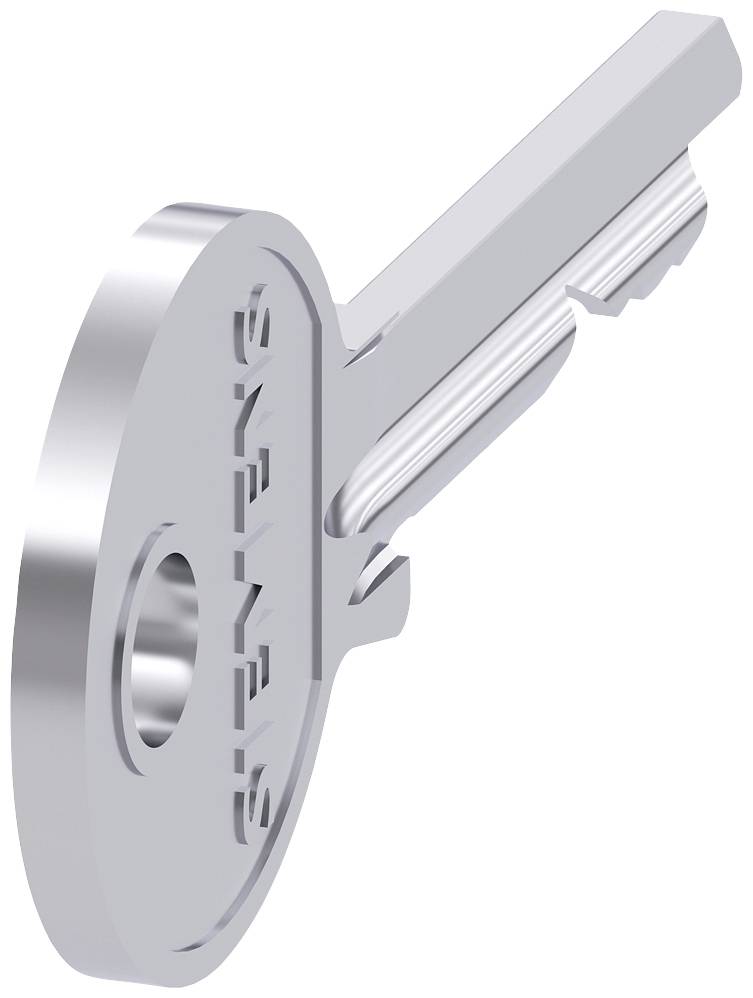

Uklj. 2 ključa.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU10005BF010AA0
EAN koda: 4011209950610
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Boja |
crna |
|---|---|

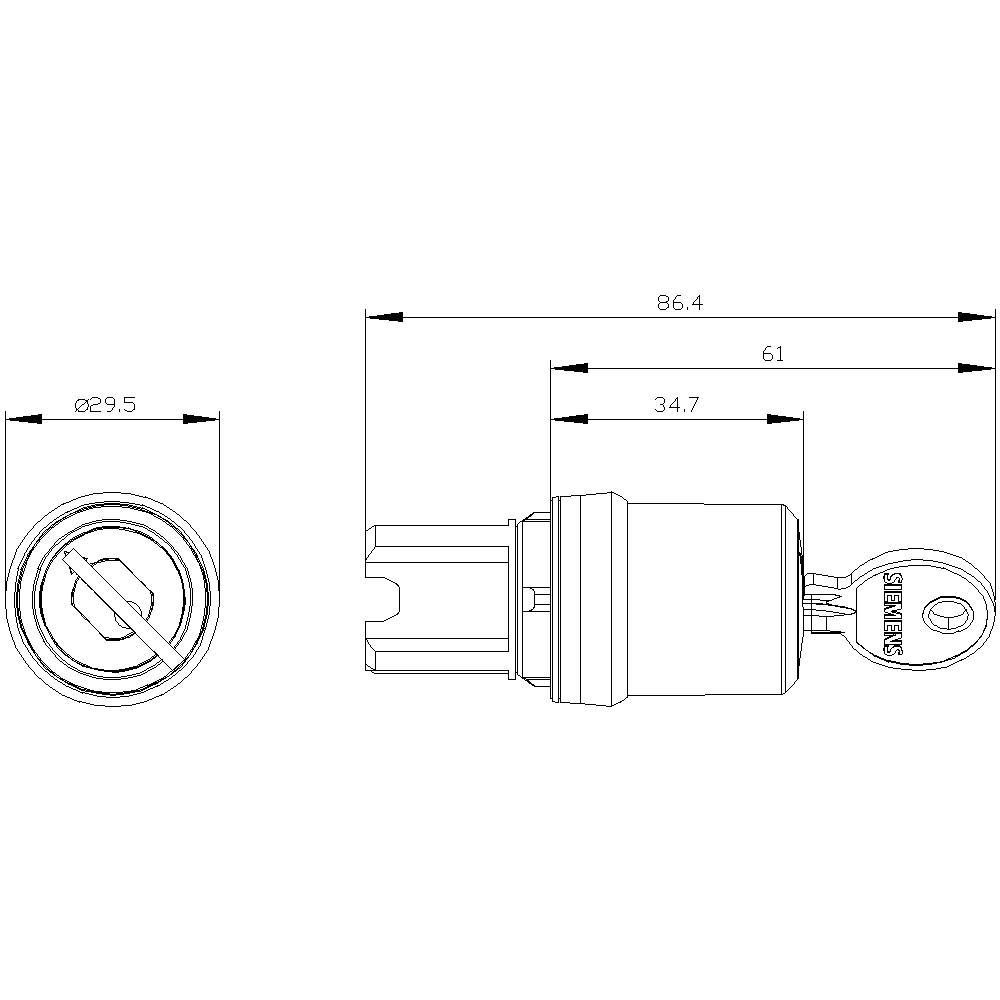

| Visina |
29.5 mm |
| Širina |
29.5 mm |
| Vrsta zaštite |
IP66 |
| Priključak |
vanjski kontakt elementa |
| Vrsta osvjetljenja |
bez |
| Motiv ispisa |
bez |
| Ključ s povlačnim polo杪jem |
isključen/- |
| Određene značajke prekidača/tipkala |
prednji prsten od plastike |
| Funkcija |
zadržava položaj |
| Položaj prebacivanja |
1 x off/on |
| Kut prebacivanja |
1 x 90 ° |
| Proizvođač-br. dijela |
3SU10005BF010AA0 |
| Ugardbeni Ø |
22 mm |
| Oblik |
okrugli |
| Mehanički vijek trajanja |
1000000 |
| Maks. temperatura |
+85 °C |
| Min. temperatura |
-25 °C |
| Hole diameter |
22.3 mm |
| Number of switch positions |
2 |
| Suitable for lighting |
FALSE |
| Spring-return |
FALSE |
| Colour front ring |
Black |
| Degree of protection (IP), front side |
IP67/IP69K |
| Width opening |
29.5 mm |
| Height opening |
61 mm |
| Material front ring |
Plastic |
| With front ring |
TRUE |
| Construction type lens |
Rectangular |
| Type of control element |
Key |
| Colour control element |
Silver |
| Switching function latching |
TRUE |
