Siemens 6AV2123-2MA03-0AX0 PLC proširenje za ekran 24 V/DC

Marka Siemens

(0 ocen)

2.565,00 EUR

(= 19.325,99 kn)

Kod proizvoda: 1359105
EAN: 4034106029258
Procijenjena isporuka:09.11.2026 - 11.11.2026

Opis

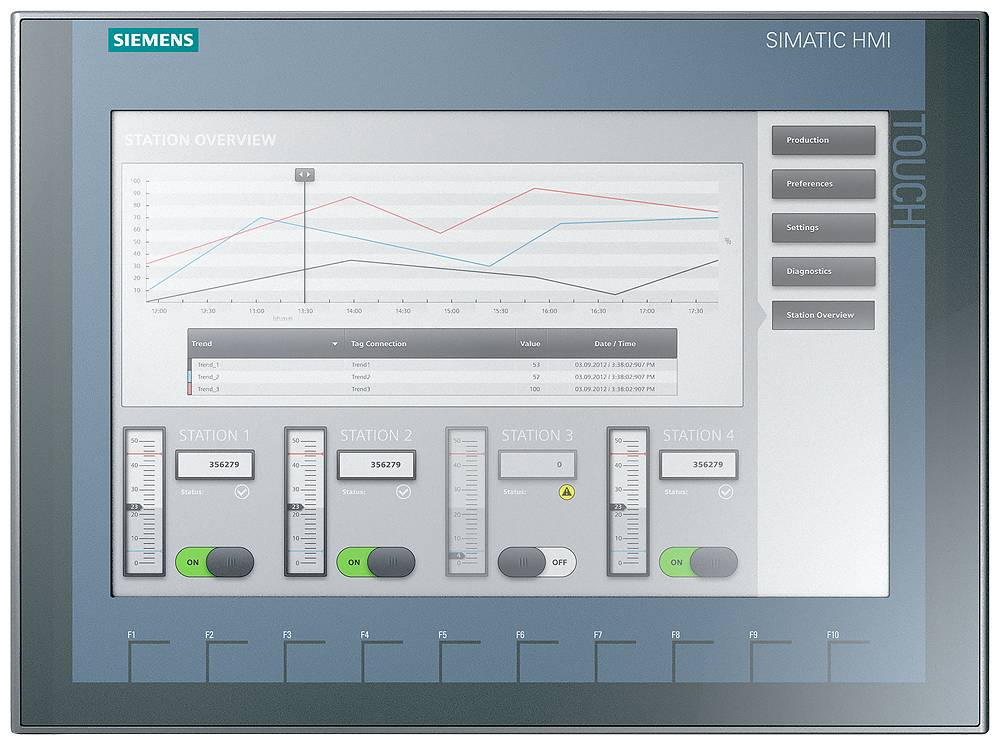

SIMATIC HMI, KTP1200 Basic DP, Basic Panel, Key/touch operation, 12 TFT display, 65536 colors, PROFIBUS interface, configurable as of WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.

Ovaj tekst je strojno preveden.

Isporuka uključuje

SPS proširenje zaslona Siemens SIMATIC HMI KTP1200 BASIC DP 6AV2123-2MA03-0AX0 24 V/DC

Značajke

Tipkovni / dodirni rad, 12 "TFT zaslon, 65536 boja, Profibusov sučelje, podesivo od WinCC Basic V13 / Step7 Basic V13 sadrži besplatni softver otvorenog koda, koji se nudi besplatno, vidi priloženi CD.

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6AV21232MA030AX0

EAN koda: 4034106029258

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1359105 Siemens 6AV2123-2MA03-0AX0 PLC proširenje za ekran 24 V/DC

Upute za rad i sigurnost 1359105 Siemens 6AV2123-2MA03-0AX0 PLC proširenje za ekran 24 V/DC

Tehnički podaci

Dužina	245 mm
Širina	330 mm
Zaslon (inči)	12 palac
Prikaz	da
Vrsta zaštite	IP65 (prednja strana)/IP20 (zadnja strana)
Proizvođač-br. dijela	6AV21232MA030AX0
Radni napon	24 V/DC
Rezolucija	1280x800 piksel
Certificiranje	CE oznaka, KC odobrenje, cULus, RCM.
Sat s realnim vremenom	da
Maks. temperatura okoline	50 °C
Min. temperatura okoline	0 °C
Built-in depth	54.9 mm
Suitable for safety functions	FALSE
Screen diagonal	12 mm
Operating temperature	0-50 °C
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	1
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	1
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	FALSE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	TRUE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	TRUE
Colour display	TRUE
Number of colours of the display	65536
Number of pixels, horizontal	1280
Number of pixels, vertical	800
Number of function buttons, programmable	10
With numeric keyboard	TRUE
With alpha numeric keyboard	TRUE
Usable project memory/user memory	10000 kB
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
Process value representation (output) possible	TRUE
Process default value (input) possible	TRUE
With recipes	TRUE
Number of password levels	50
With printer output	FALSE
Number of online languages	10
Additional software components, loadable	FALSE
Degree of protection (IP), front side	IP65
With SW interfaces	FALSE
Width of the front	330 mm
Height of the front	245 mm
Suitable for rail mounting	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	0
Number of HW-interfaces wireless	0
Wall mounting/direct mounting	FALSE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Supply voltage DC	19.2-28.8 V
Type of display	TFT
Number of grey-scales/blue-scales of display	0
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	0
Number of system buttons	0
