Opis

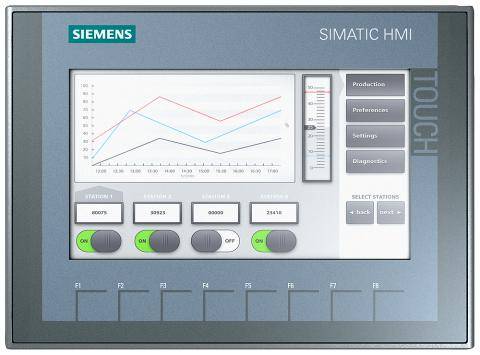

SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7 TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD Basic Panels are perfect for the cost-effective implementation of simple visualization tasks at machine level. Their basic features and functionality as well as an especially attractive price make them perfect entry-level devices.
Ovaj tekst je strojno preveden.
Isporuka uključuje
SPS proširenje zaslona Siemens SIMATIC HMI KTP700 BASIC 6AV2123-2GB03-0AX0 24 V/DC
Značajke
Operacija tipkovnice / touch-a, 7 "(17.78 cm) TFT zaslon, 65536 boja, Profinet sučelje, konfigurirano od WinCC BASIC V13 / Step7 Basic V13 sadrži besplatni softver otvorenog koda.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6AV21232GB030AX0
EAN koda: 4034106029210
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 1359103 Siemens 6AV2123-2GB03-0AX0 PLC proširenje za ekran 24 V/DC
Podatkovna tablica 1359103 Siemens 6AV2123-2GB03-0AX0 PLC proširenje za ekran 24 V/DC
Upute za rad i sigurnost 1359103 Siemens 6AV2123-2GB03-0AX0 PLC proširenje za ekran 24 V/DC
Tehnički podaci
| Vrsta proizvoda |
PLC proširenje za ekran |
|---|---|
| Radni napon |
24 V/DC |
| Prikaz |
da |
| Rezolucija |
800x480 piksel |
| Vrsta zaštite |
IP65 (prednja strana)/IP20 (zadnja strana) |
| Tip |
6AV2123-2GB03-0AX0 |
| Min. temperatura okoline |
0 °C |
| Maks. temperatura okoline |
50 °C |
| Proizvođač-br. dijela |
6AV21232GB030AX0 |
| Montaža |
okomito |
| dim. |
(D x Š) 85.9 mm x 154.1 mm |
| Izvedba |
TFT zaslon širokog zaslona, LED pozadinsko osvjetljenje |
| Pogonski napon |
19.2 - 28.8 V/DC |
| Pogonski napon maks. |
28.8 V/DC |
| min. pogonski napon |
19.2 V/DC |
| Sat s realnim vremenom |
da |
| Širina |
154.1 mm |
| Dužina |
85.9 mm |
| Boja |
višebojna |
| Certificiranje |
CE oznaka, KC odobrenje, cULus, RCM. |
| Težina |
0.98 |
| Built-in depth |
39 mm |
| Suitable for safety functions |
FALSE |
| Screen diagonal |
7 mm |
| Operating temperature |
0-50 °C |
| Voltage type (supply voltage) |
DC |
| Supporting protocol for LON |
FALSE |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces other |
0 |
| Supporting protocol for TCP/IP |
TRUE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
TRUE |
| Colour display |
TRUE |
| Number of colours of the display |
65536 |
| Number of pixels, horizontal |
800 |
| Number of pixels, vertical |
480 |
| Number of function buttons, programmable |
8 |
| With numeric keyboard |
TRUE |
| With alpha numeric keyboard |
TRUE |
| Usable project memory/user memory |
10000 kB |
| With message indication |
TRUE |
| With message system (incl. buffer and confirmation) |
TRUE |
| Process value representation (output) possible |
TRUE |
| Process default value (input) possible |
TRUE |
| With recipes |
TRUE |
| Number of password levels |
50 |
| With printer output |
FALSE |
| Number of online languages |
10 |
| Additional software components, loadable |
FALSE |
| Degree of protection (IP), front side |
IP65 |
| With SW interfaces |
FALSE |
| Width of the front |
214 mm |
| Height of the front |
158 mm |
| Suitable for rail mounting |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Number of interfaces PROFINET |
1 |
| Number of HW-interfaces wireless |
0 |
| Wall mounting/direct mounting |
FALSE |
| Radio standard Bluetooth |
FALSE |
| Radio standard WLAN 802.11 |
FALSE |
| IO link master |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
TRUE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Supply voltage DC |
19.2-28.8 V |
| Type of display |
TFT |
| Number of grey-scales/blue-scales of display |
0 |
| Radio standard GPRS |
FALSE |
| Radio standard GSM |
FALSE |
| Mobile communications standard 3G (UMTS) |
FALSE |
| Number of buttons with LED |
0 |
| Number of system buttons |
0 |
